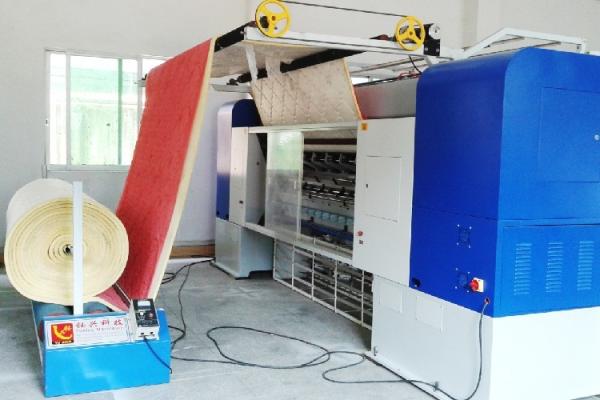

Multi Functional Computerized Quilting Machine High Speed Servo Motor

Name: Multi Functional Computerized Quilting Machine High Speed Servo Motor
Brand: Yuxing
Price: 1 USD

China Multi Functional Computerized Quilting Machine High Speed Servo Motor factory

Brand Name : Yuxing

Model Number : YXN-94-3D

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 SETS/MONTH

Delivery Time : 15 days

Packaging Details : Export packing

Product name : chain stitch quilting machine

Quilting width : 2.4 meter

Main shaft speed : 500-1200rpm

L*W*H : 5*1.65*2 Meter

Weight : 6500kg

Sewing thickness : 80 mm

Stitch size : 2 to 8mm

Contact Now

Multi Functional Computerized Automated Quilting Machine High Speed Servo Motor

Automated quilting machine Feature

Machine body and foot are reinforced. More stably on quilting.
Adjust speed by computer 500-1200 RPM, set different stitch length(2mm-8mm) by computer .
New upgraded computer system, compatible with embroidery file format(DST/DSB)
Pattern compensation function is an effective solution for looping pattern with thick material.
Auto stop sensor detect thread condition, when thread broken, machine will automatically stop.
180 degree and 360 degree random quilting patterns, and limited multi span for tack and jump designs.

Function:

1. advanced computerized control system, improved the machine performance and speed, increasing the output.

2. Quilting length can be set down, it can automatically return to zero once finished.

3. A new generation computerized control system with accuracy quilting, no need much modify the pattern.

4. The pattern with CAD drawing, easier to learn and drawing with accurately.

Specification:

Product Name	Computerized Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3D(2"+3"/3"+3")
Size(LWH)	500016502000mm
Weight	6500kg
Quilting width	2485mm
Needle bar space	50.8,76.2,(2"+3");76.2,76.2(3"+3")
Quilting thickness	≤80mm
Rolling speed	600-1200r/min
Output	10-250m/hour
Needle type	24/180,23/160,22/140,21/130
X-axis movement	410mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	7.5KW

Multi Functional Computerized Quilting Machine High Speed Servo Motor

Designs

Multi Functional Computerized Quilting Machine High Speed Servo Motor
